NE600 Series

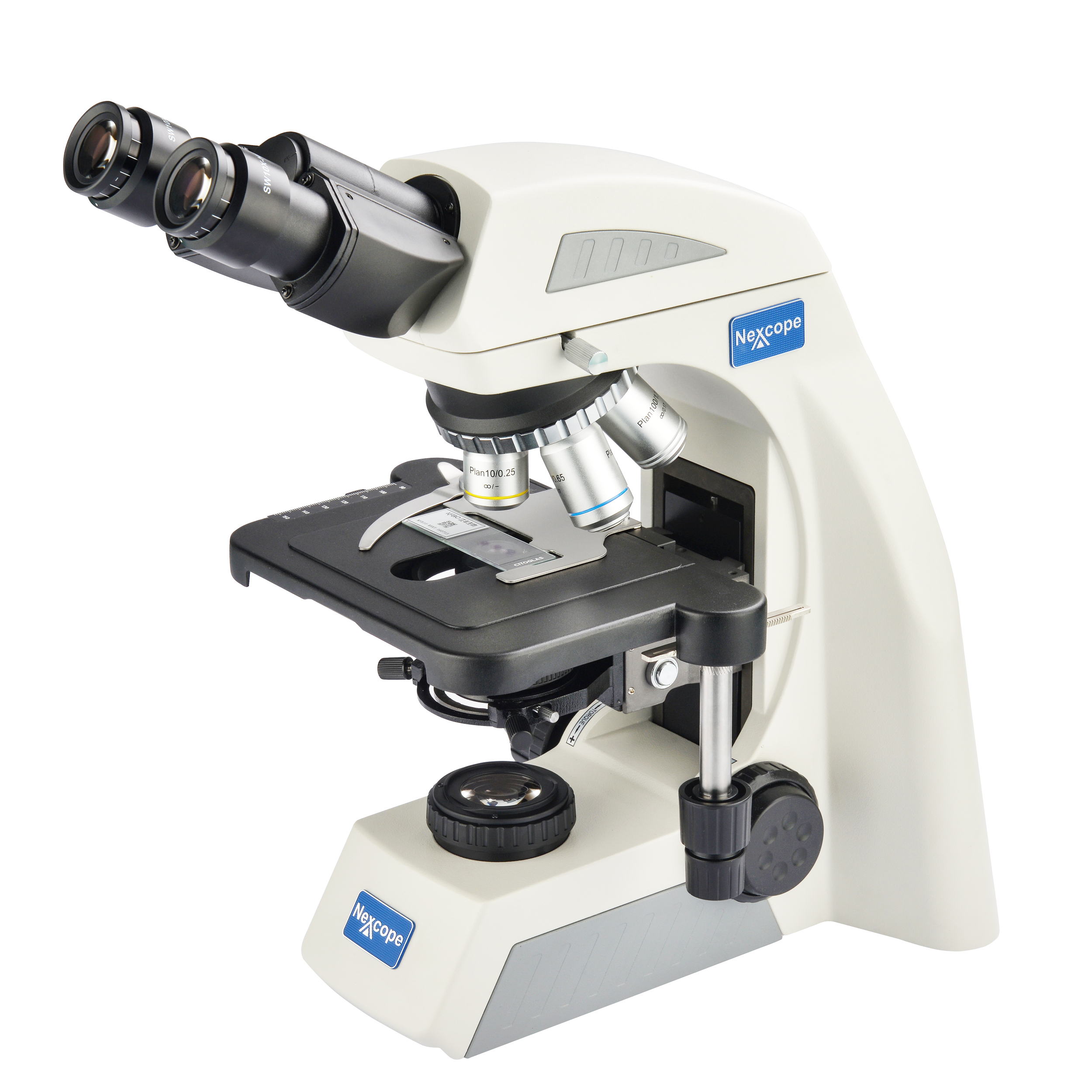

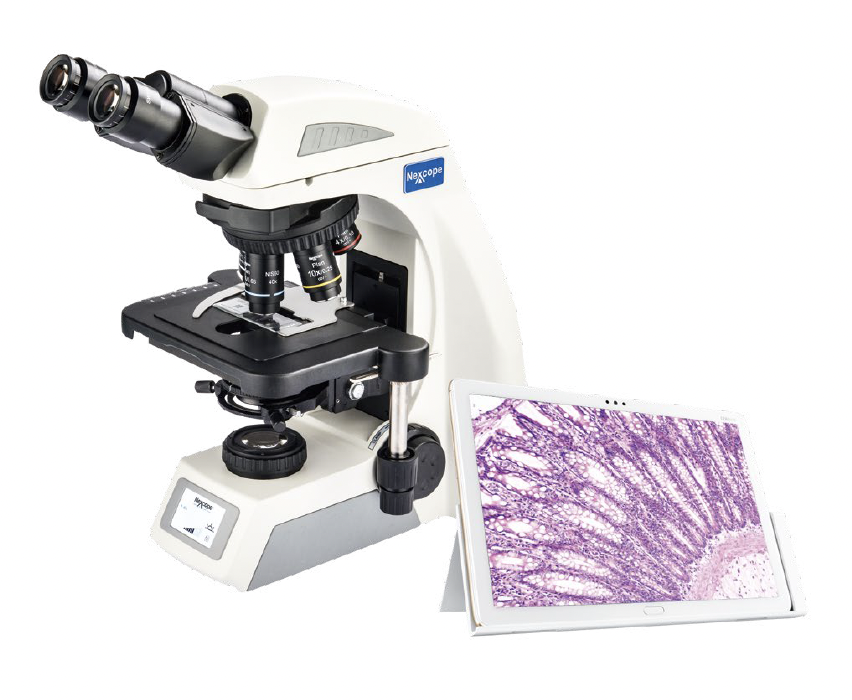

Introducing the Biological Microscope
The NE600 Series is Nexcope's biological microscope line built around three principles: environmental responsibility, operator comfort, and high-performance optics. Available in two models - the NE610 and NE620 - it's designed for teaching laboratories, clinical environments, and life sciences research where reliability and ease of use matter as much as image quality.
Both models share the same NIS infinity optical system and 22mm wide-field platform. The NE620 adds a coded nosepiece with automatic illumination adjustment, a front-panel LCD display, app software, and a 3W LED illuminator - making it the stronger choice for higher-demand or multi-user settings.
The NE600 Series is built to grow with your work. From basic brightfield observation through to phase contrast, fluorescence, and mobile field use, it can be configured to match a wide range of applications without needing a new instrument.
Various Observation Methods
As a continually upgradable microscope, the Green Series can be extended from basic models to support a wide variety of observation capabilities - including bright field, dark field, phase contrast, fluorescence and simple polarising.
Key Features

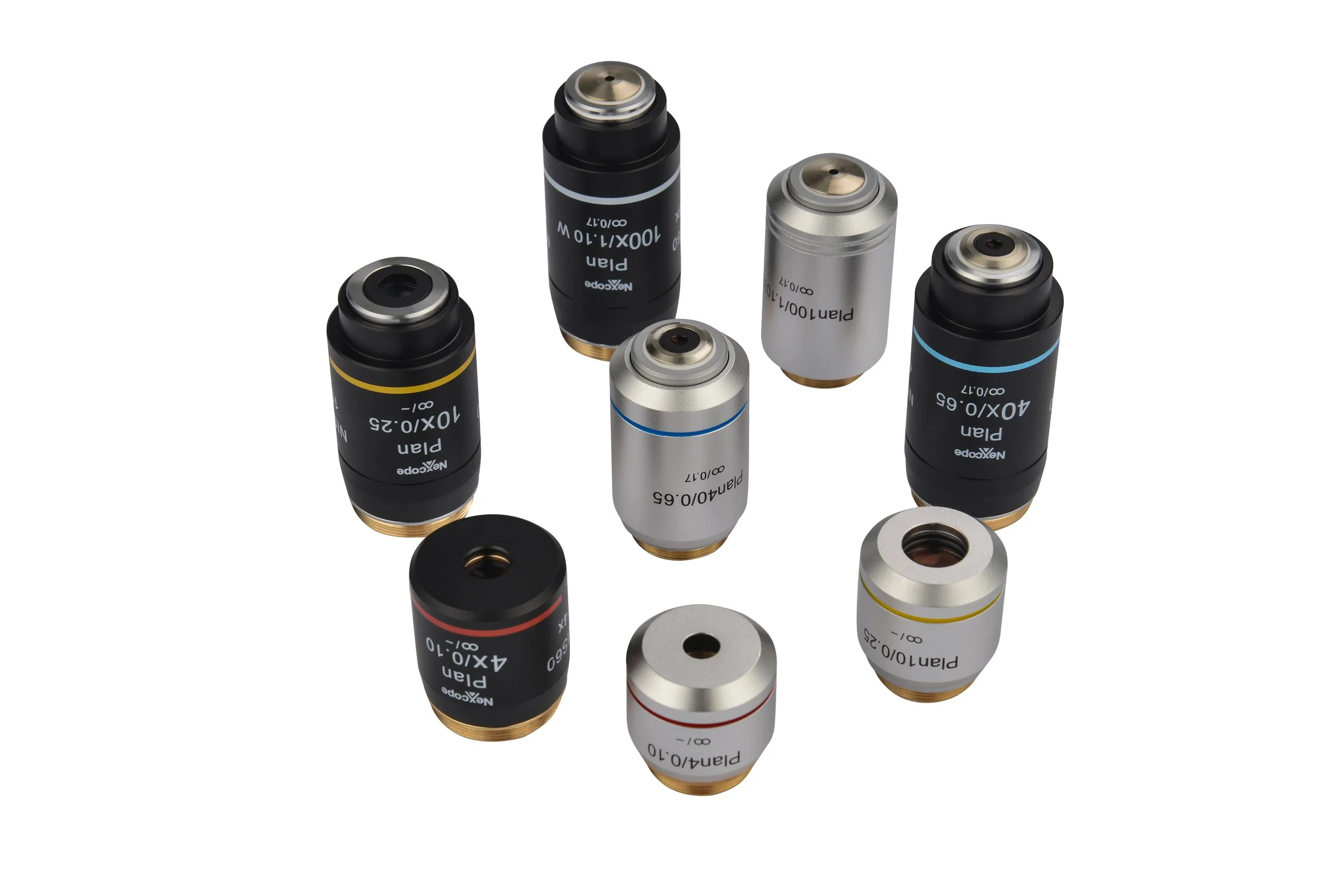

NIS Infinity Optical System
Infinity plan objectives provide high contrast and a very flat image up to FN22. Combined with FN22 wide field eyepieces, the system delivers sharp, excellent resolution and high signal-to-noise ratio imaging across the entire field of view.

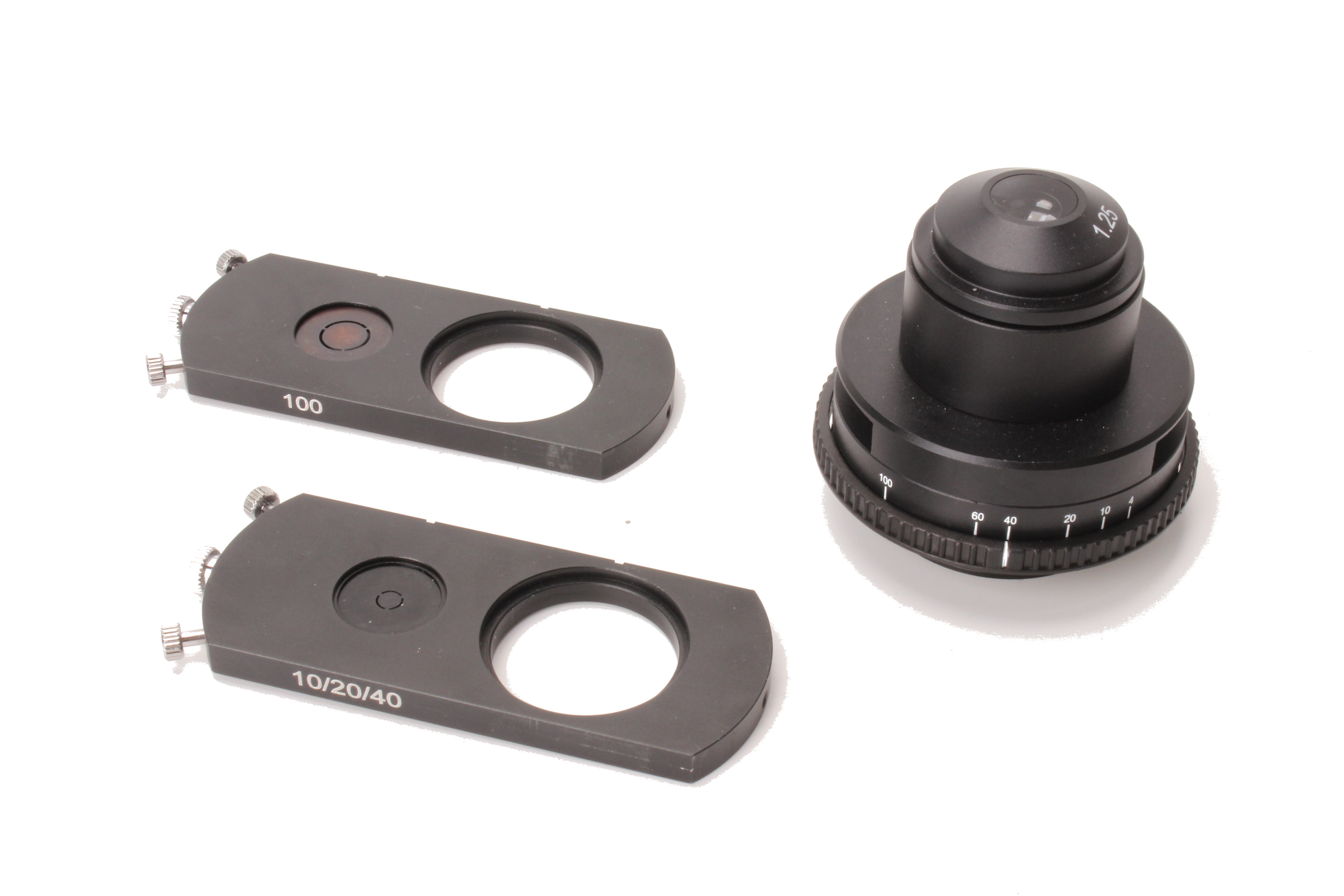

Multifunctional Universal Condenser
Nexcope offers universal condensers for bright field, dark field and phase contrast. Observation methods can be quickly switched by switching the slider. The phase contrast and bright field slider is universal for 4x-100x objectives - simple and fast to use. The N.A. value index on the aperture diaphragm of the condenser is easily set to get the exact size of diaphragm to correspond with the different objectives.
Multifunctional Digital Head
The Green Series features a built-in 5MP camera supporting Android, iOS and Windows operating systems via wired and Wi-Fi modes. The microscope image can be output to an external device in real time with no data cable required. By scanning the QR code on the microscope, the app can be installed and images viewed directly on a phone or tablet.

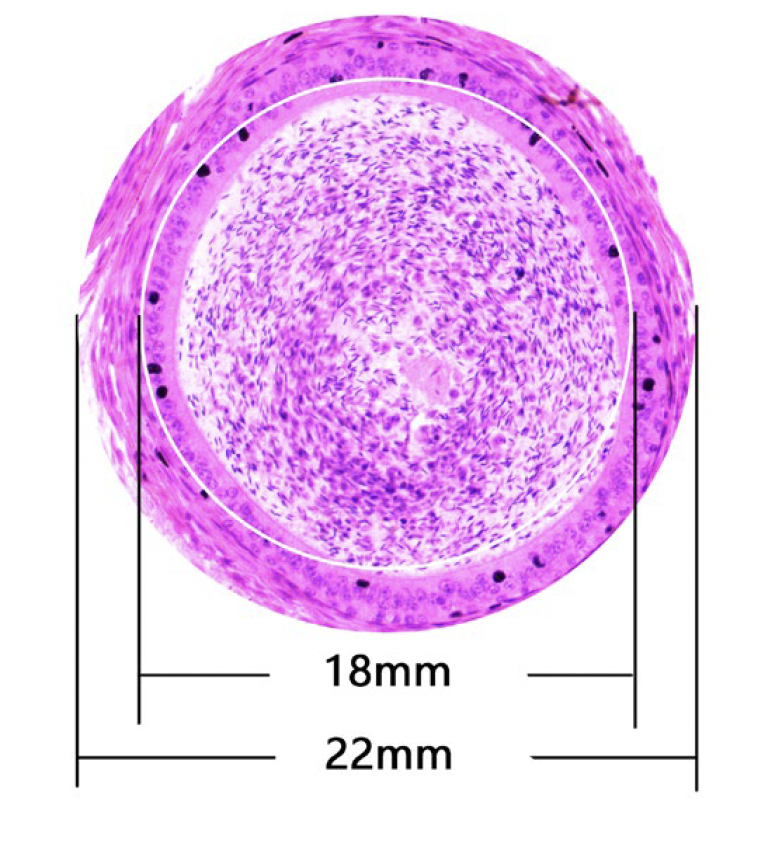

22mm Wide Field of View
The Green Series achieves a wide field of 22mm with 10x eyepieces, enabling more comprehensive observation content and faster sample screening. The eyepiece uses a flat field distortion-free design to prevent edge distortion and stray light.

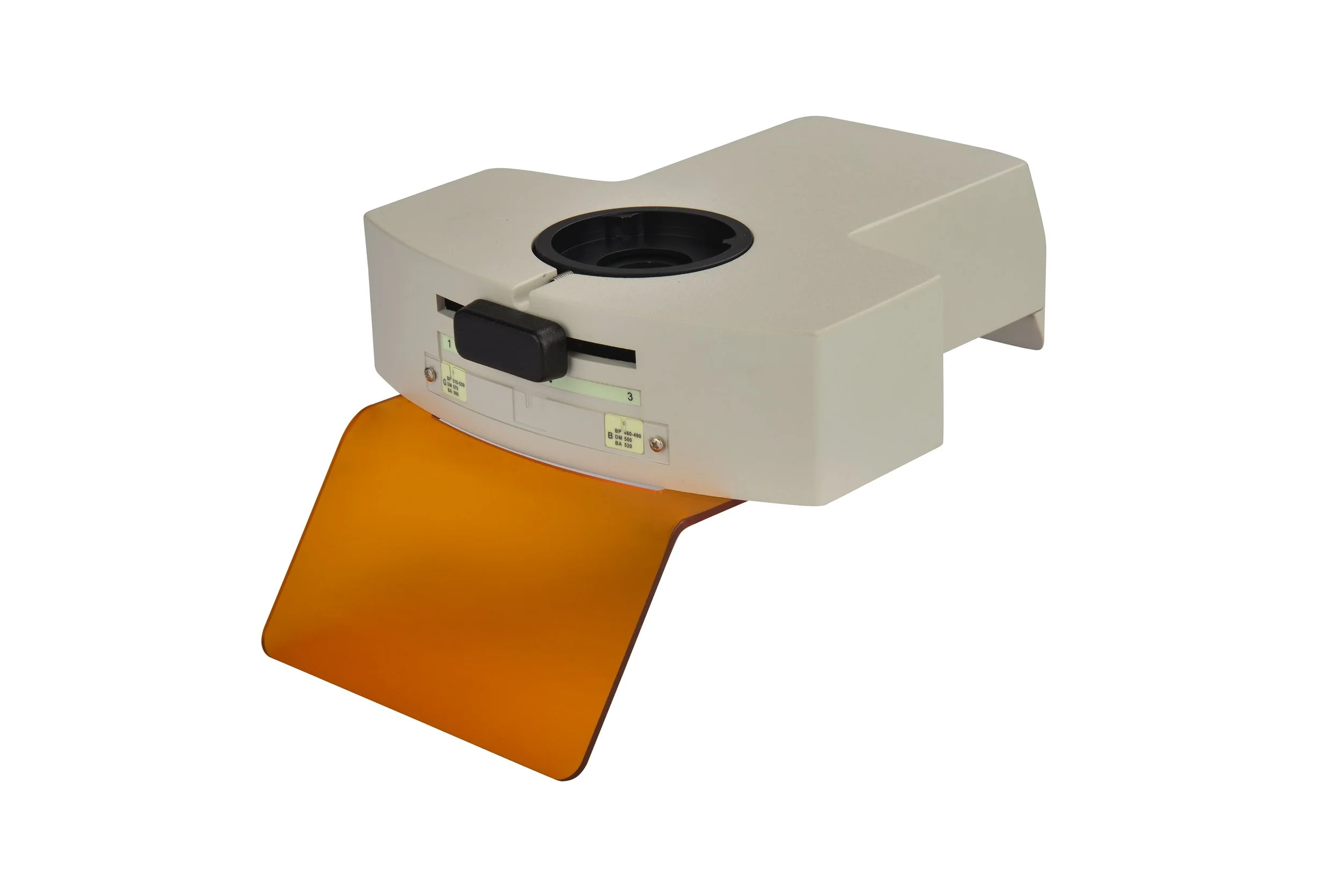

LED EPI-Fluorescent Illumination
LED EPI-fluorescent illumination is safe and convenient. No warm-up or cool-down time is required and there is no need to align the bulb. The long lifetime of the LED bulb is up to 5,000 hours. Two filter positions are available and switching is fast and easy.

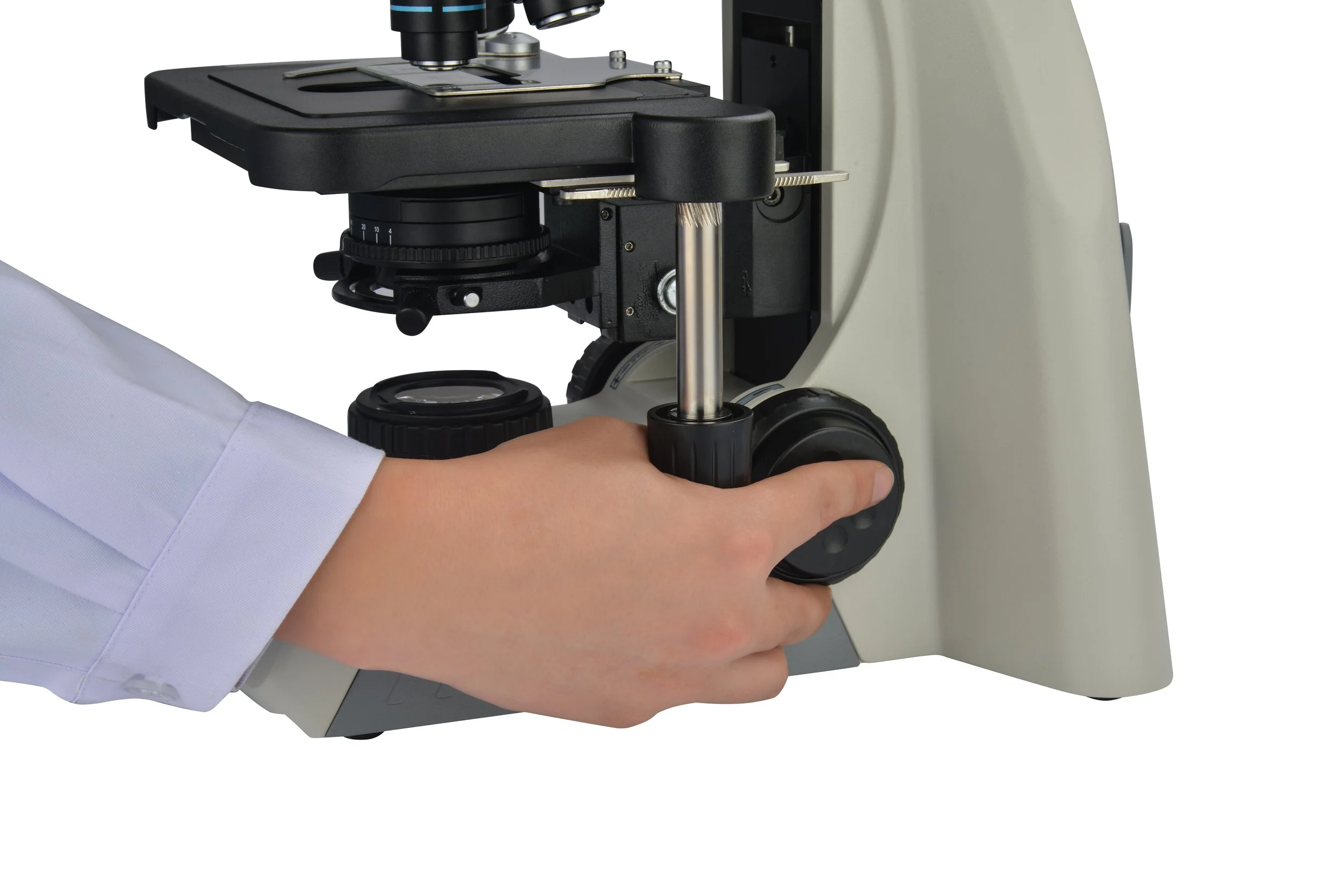

Ergonomic Design
The Green Series uses a high eye-point, low-hand focus mechanism and low-hand stage to ensure comfortable operation during extended use. The focus knob, illumination control knob and stage handle are all within close reach, allowing the user to keep both hands on the table while working.
Technical Specifications
| GREEN SERIES OUTFIT | |||
|---|---|---|---|
| Item | Specification | NE610 | NE620 |
| Optical System | Infinity Optical System | ||
| Eyepiece | EW10x/22mm | ||
| Viewing Head | Infinity Seidentopf Binocular Viewing Head, inclined at 45°, interpupillary 47-78mm | ||
| Infinity Seidentopf Trinocular Viewing Head, inclined at 30°, interpupillary 47-78mm, splitting ratio 50/50 (100/0 or 0/100 optional) | |||
| Wireless Digital Head with Built-in 5MP Camera | |||
| Inclinable Binocular Viewing Head | - | ||
| Objective | Infinity Plan Objective NIS45 | - | |
| Infinity Plan Objective NIS60 | - | ||
| Infinity Phase Contrast Objective NIS45 | - | ||
| Infinity Phase Contrast Objective NIS60 | - | ||
| Nosepiece | Backward Quintuple Nosepiece (Non-coding) | - | |
| Backward Quintuple Nosepiece (Coding) | - | ||
| Rackless Stage | Rackless Stage 230mm × 150mm, moving range 78mm × 54mm | ||
| Condenser | Inserted Abbe Condenser NA1.25 (including empty plate) | ||
| Bright Field - Phase Contrast Plate (4x-100x Universal) | |||
| Bright Field - Dark Field Plate | |||
| Focusing System | Coaxial coarse and fine adjustment; coarse stroke 37.7mm per rotation; fine stroke 0.2mm per rotation; fine division 0.002mm; moving range 30mm | ||
| Illumination | 1W S-LED | - | |
| 3W S-LED (LCD display magnification, timing sleep, brightness indication and lock, etc.) | - | ||
| Fluorescence Attachment | 3W LED, two wave range (B, G, U, V can be combined), fly-eye lens illumination | ||
| Accessories | 1x Photo Attachment | ||
| 0.5x Photo Attachment | |||
| Simple Polarisation Set | |||
| Camera | |||
| App Software | - | ||
| Filter | Green | ||
● Standard Outfit | ○ Optional
