NE900 Series

Upright Clinical Microscope

Introducing the NE900 Series - Nexcope's most versatile upright research microscope, available in manual, semi-motorised, and fully automated configurations

The Nexcope NE900 is a professional upright research microscope series built for laboratory, clinical, and scientific research applications. Available in three configurations - the manual NE910, semi-motorised NE930, and fully automated fluorescent NE950 - the NE900 series offers a modular platform that adapts to the demands of the work rather than the other way around. Built on Nexcope's NIS infinite optical system with ergonomic design throughout, it supports the widest range of observation methods in the Nexcope range.

Bright-Field

Multiple Observation Modes

Dark-Field

Phase Contrast

Fluorescence

Polarisation

DIC (Differential Interference Contrast)

Key Features

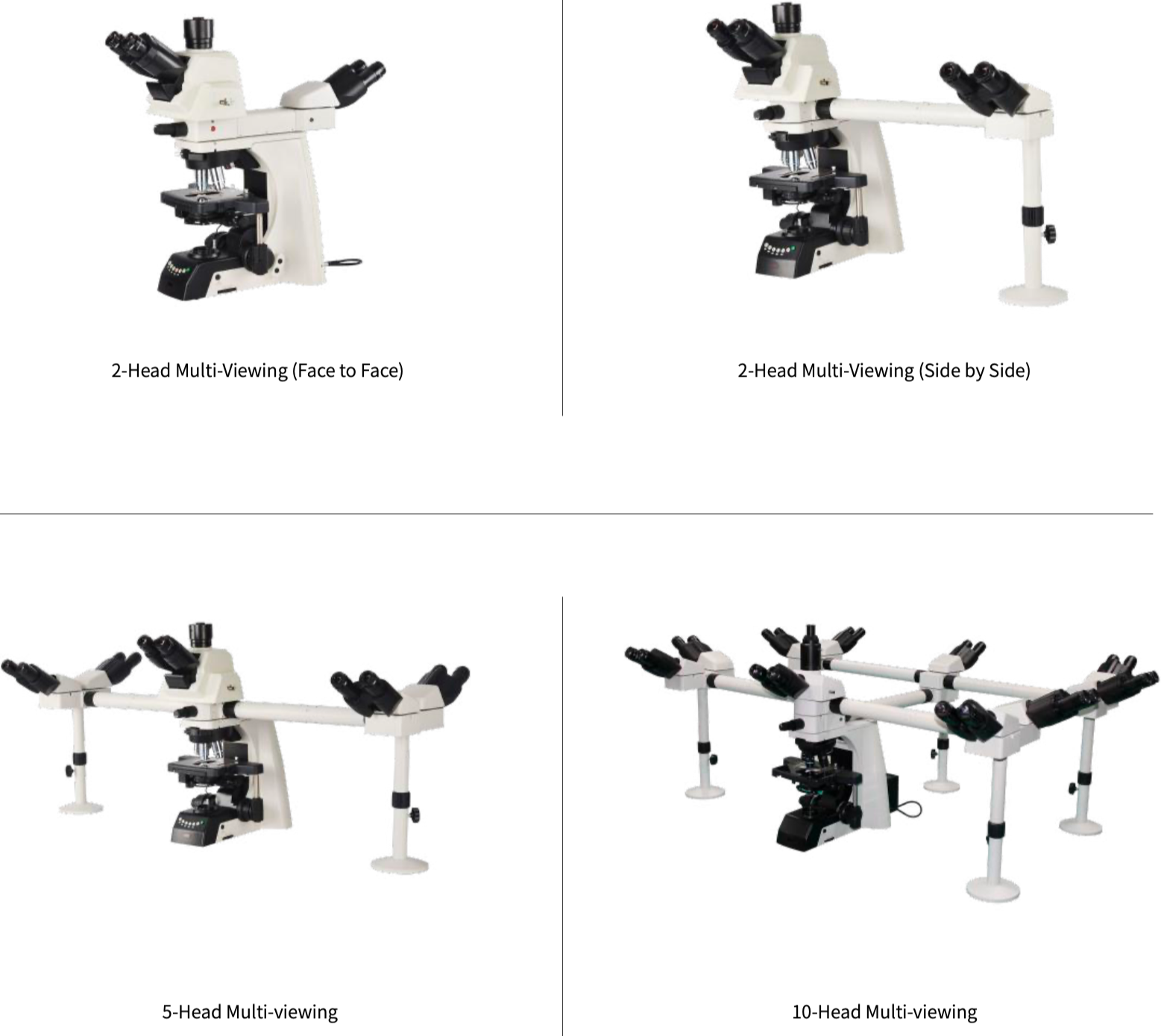

Multi-viewing System

Expandable to 2, 5, or 10 simultaneous viewers without image distortion or brightness loss. Built for teaching, training, and collaborative pathology diagnosis.

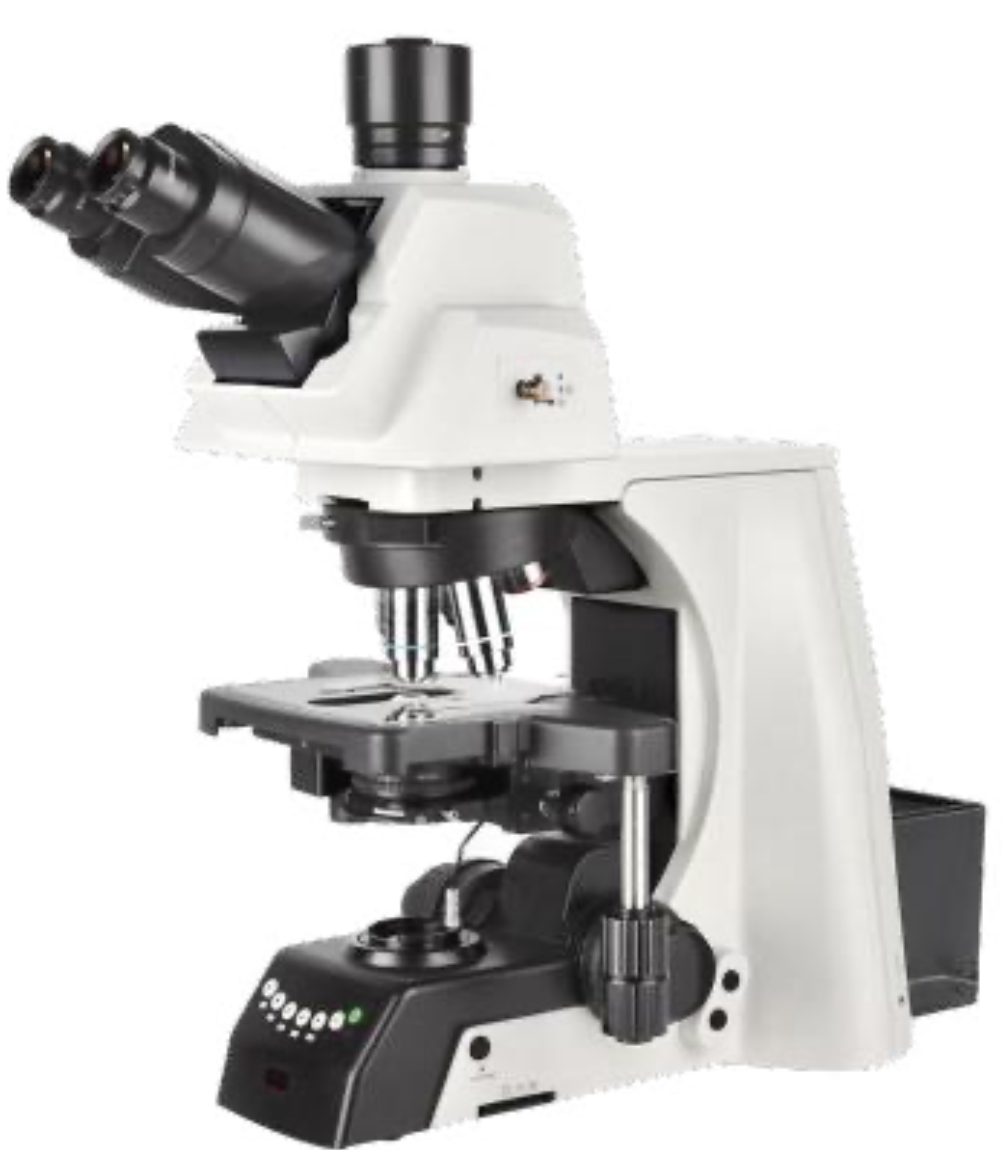

NE930 Spotlight - Semi-Motorised

The NE930 adds motorised nosepiece rotation, automatic light intensity management, and a one-touch image capture button - semi-automated convenience without the full NE950 price point.

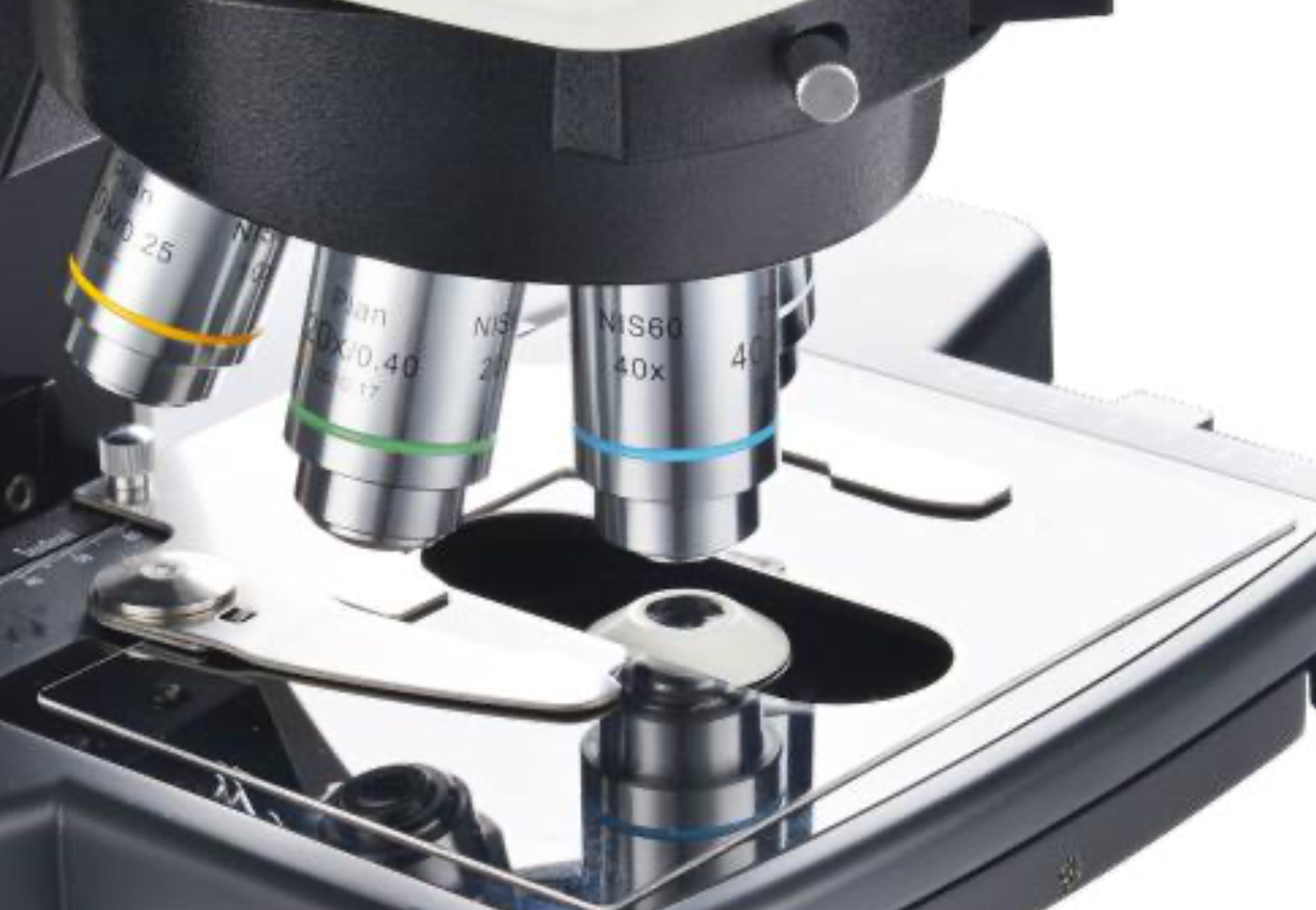

Sapphire or Gorilla Glass Stage Insert Choose between Gorilla Glass or sapphire glass stage inserts - both durable and easy to clean.

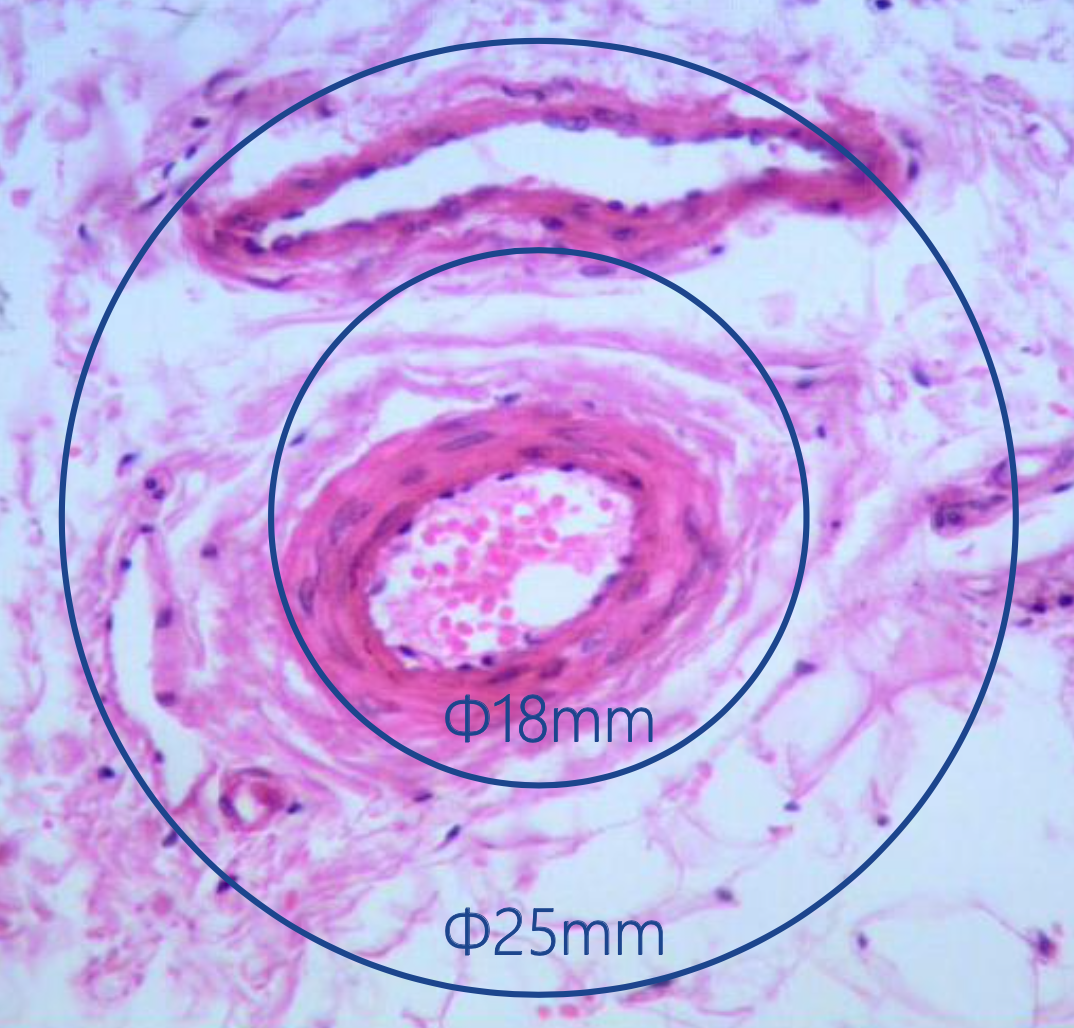

Wide-Field 25mm Eyepiece

Larger field of view for faster, more comprehensive sample observation.

Technical Specifications


    Project
    NE910
    NE920
    NE930
    NE950

    Microscope frame
    Optical system
    NIS infinite optical system

    Nosepieces
    Manual sextuple nosepiece
    Intelligent sextuple nosepiece
    Motorised sextuple nosepiece
    Motorised sextuple nosepiece

    Focusing
    Low-hand coaxial focusing mechanism (with limit and elastic adjusting ring); focusing range 35mm; fine adjustment grid value 1μm
    Low-hand motorised focusing mechanism; independent operation of left and right handwheels; 3-speed adjustment; focusing range 30mm; repetitive positioning accuracy 0.1μm; motorised escape and recovery

    Transmitted illumination
    12V100W halogen lamp • 3W LED light source
    3W LED; transmitted source brightness motorised control; light intensity management function

    Monitor
    -
    Microscope use status display screen
    -
    Touch control screen

    Eyepiece tube
    Binocular tube
    Depression angle: 30 degrees; pupillary distance adjustment range: 47-78mm

    Trinocular tube
    Eyepiece/port: 100/0, 20/80, 0/100; depression angle: 30 degrees; pupillary distance adjustment range: 47-78mm

    Ergonomic trinocular tube
    Eyepiece/port: 100/0, 20/80, 0/100; depression angle: 0-30 degrees; pupillary distance adjustment range: 47-78mm

    Eyepiece
    SW10X (25) • SW10X (22) • EW12.5X (17.5) • WF15X (16) • WF20X (12)

    Stage
    Manual stage (Corning glass countertop)
    Moving distance: 78(X)×32(Y)mm; 1mm/grid; accuracy 0.1mm; movable handle can be raised and lowered 18mm; tightness adjustable; bump guide mechanism; one-hand slicing
    -

    Manual stage (Sapphire glass countertop)
    -

    Motorised stage
    -
    High-precision motorised XY stage (stroke: X axis 125mm; Y axis 75mm); repeated positioning accuracy ±1.5μm

    Condensing lens
    Brightfield condenser
    Manual swing condenser
    Manual swing condenser
    Motorised swing condenser
    Universal condenser (4X-100X)

    Rotating disc condenser
    Quintuple phase contrast turntable condenser • Quintuple DIC turntable condenser • Octagonal phase contrast DIC universal turntable condenser

    Darkfield condenser
    Darkfield condenser dry • Darkfield condenser oil

    FL-900 Epi-fluorescence illuminator
    Epi-fluorescence illuminator
    With field diaphragm and aperture diaphragm, density plate, Köhler illumination system and UV eye protection screen

    Filter cube turret
    Sextuple epi-fluorescence cube turret (manual)

    Epi-illumination light source
    Osram mercury lamp HBO 100W/2 • Metal halide light source 75W • Four-colour LED fluorescent 5W

    FL-900C/D Epi-fluorescence illuminator
    Epi-fluorescence illuminator
    Recapture lighting with UV eye protection screen

    Filter cube turret
    Sextuple epi-fluorescence cube turret (manual/motorised); up to four fluorescent lens groups can be installed

    Epi-illumination light source
    3W LED fluorescent source; up to 4 colour fluorescent light sources; adjustable brightness

    Observation method
    Brightfield, epi-fluorescence, darkfield, phase contrast, simple polarising, DIC
