NM910/NM930
Upright Metallurgical Microscope
Upright Metallurgical Microscope

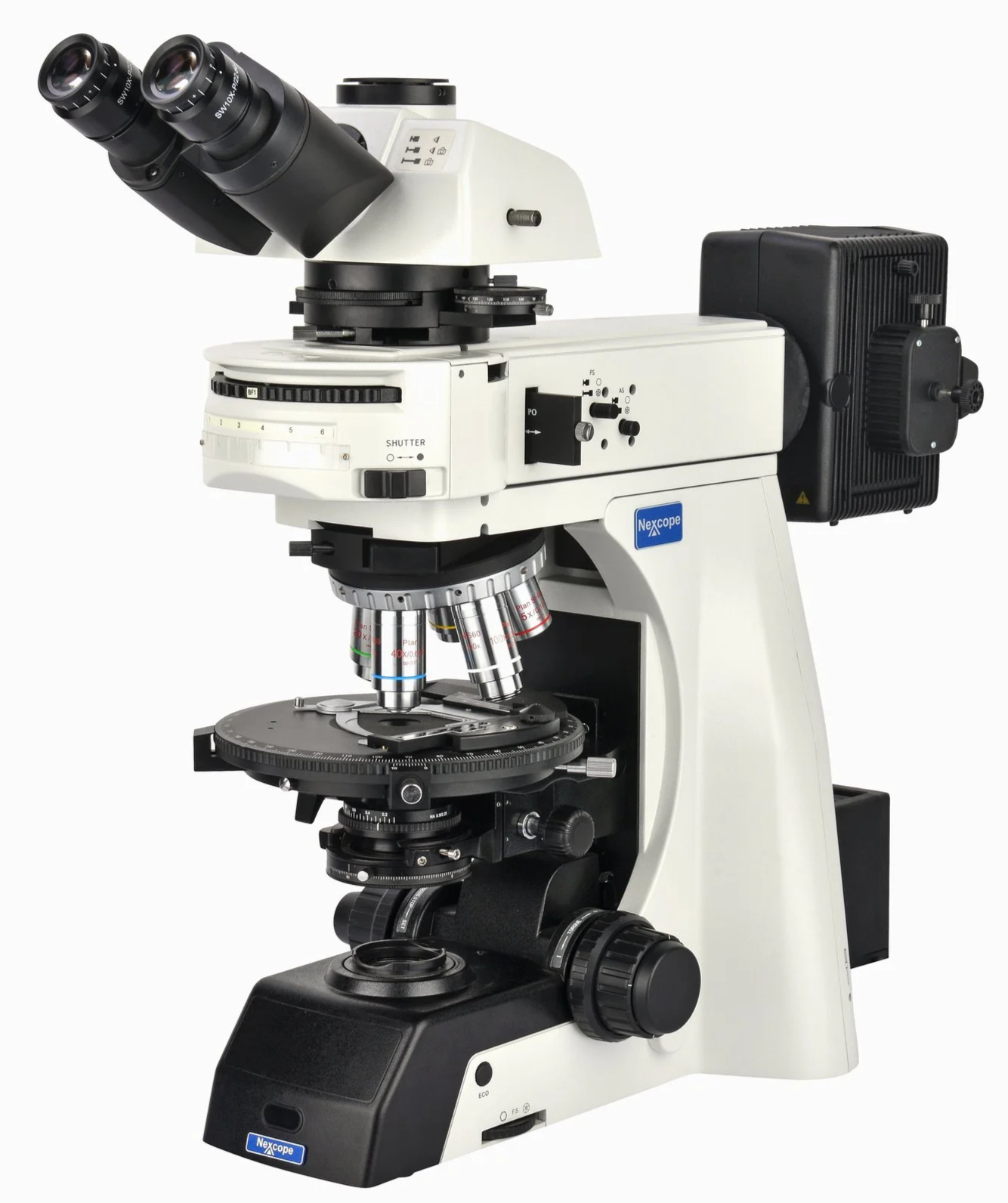

Introducing the Nexcope NM900 series (NM910 and NM930), an upright metallurgical microscope for industry and materials science.
With an excellent NIS optical system, the NM900 series provides high resolution and chromatic aberration corrected images both in the eyepieces and on the monitor. The NM900 series has been designed with modularity to meet various industrial and materials science applications, giving users flexibility to build a system for specific needs.
Various Observation Methods
Darkfield
Darkfield enables observation of scattered or diffracted light from the specimen, making imperfections clearly stand out. Ideal for detecting minute scratches or flaws down to the 8nm level, including wafers and mirror surface specimens.
Polarised Light
Utilises polarised light generated by a set of filters to reveal the characteristics of the sample. Suitable for metallurgical structures, minerals, LCDs, and semiconductor materials.
Transmitted Light Observation
True transmitted light observation is available for transparent specimens such as LCDs, plastics, and glass materials. Brightfield and polarised light examination can be accomplished all in one convenient system.
Differential Interference Contrast
Height differences not detectable with brightfield become a relief-like or 3D image with improved contrast. Ideal for examining metallurgical structures, minerals, magnetic heads, hard-disk media, and polished wafer surfaces.
Key Features

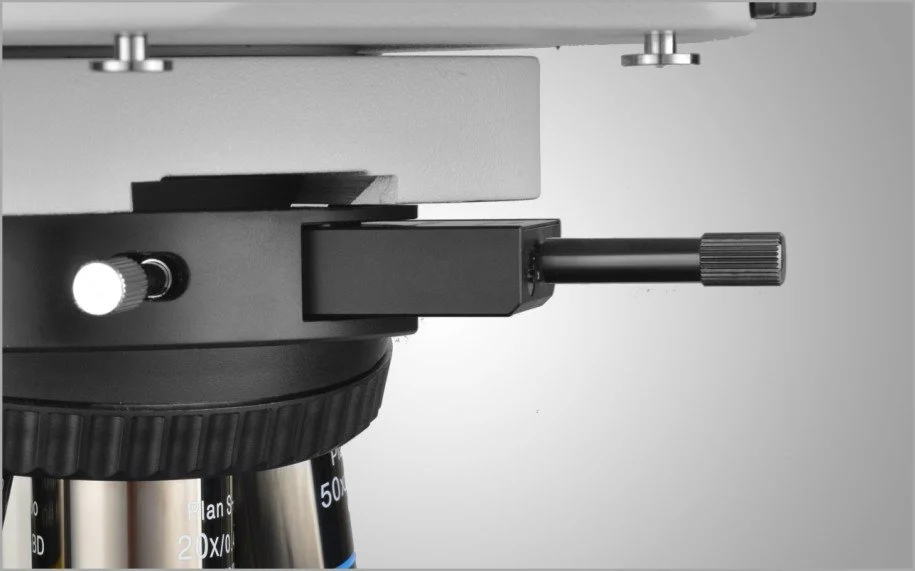

Nomarski DIC
With newly designed DIC module, the height difference of a specimen which can not be detected with brightfield becomes a relief-like or 3D image. It is ideal for the observation of LCD conducting particles and the surface scratches of hard-disk etc.

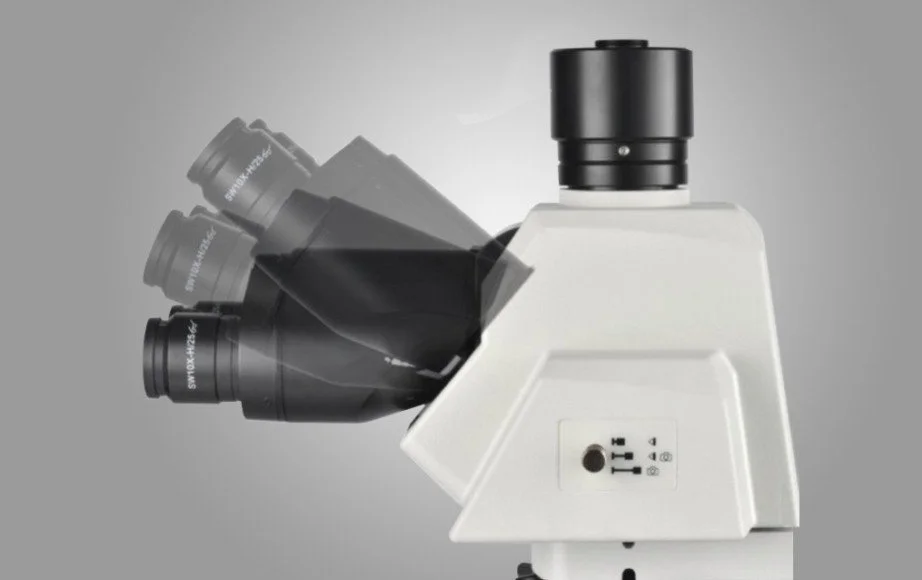

Ergo Tilting Trinocular Head
Eye tube can be adjustable from 0 ° to 35 °, Trinocular tube can be connected to SLR camera and digital camera, having a 3-postion beam splitter（0:100, 100:0, 80:20, the splitter bar can be assembled on the either side according to user's requirement.

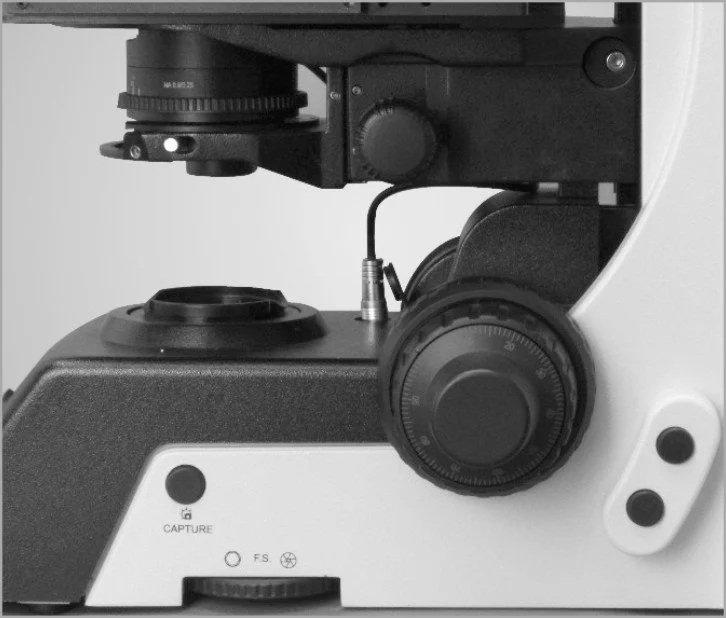

Shortcut Buttons (NM930 model)
With this shortcut button, the user could switch 2 preset objectives fast. Also, this shortcut button could be set with other functions by user.

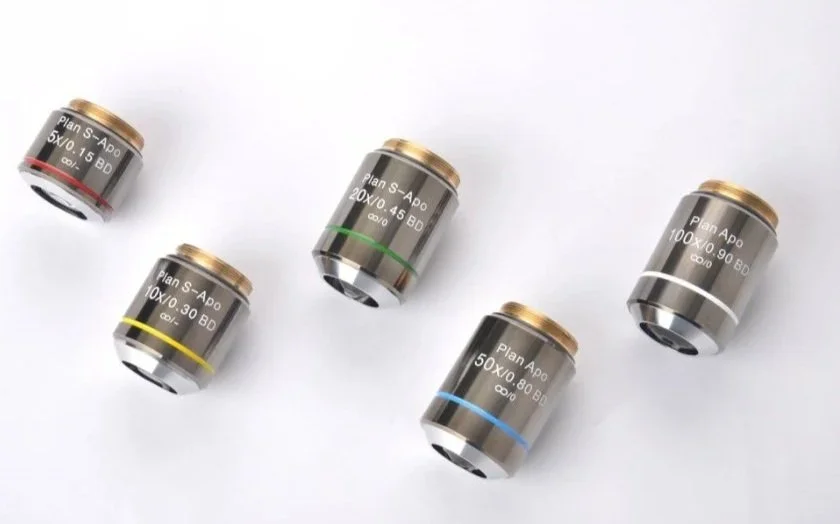

NIS45 Series Objectives
By using carefully selected high-transparent glass and advanced coating technology, NIS45 objectives provide high resolution images and accurately reproduce the natural colour of the specimen. A variety of objectives is available for special applications, including polarising and long working distance.

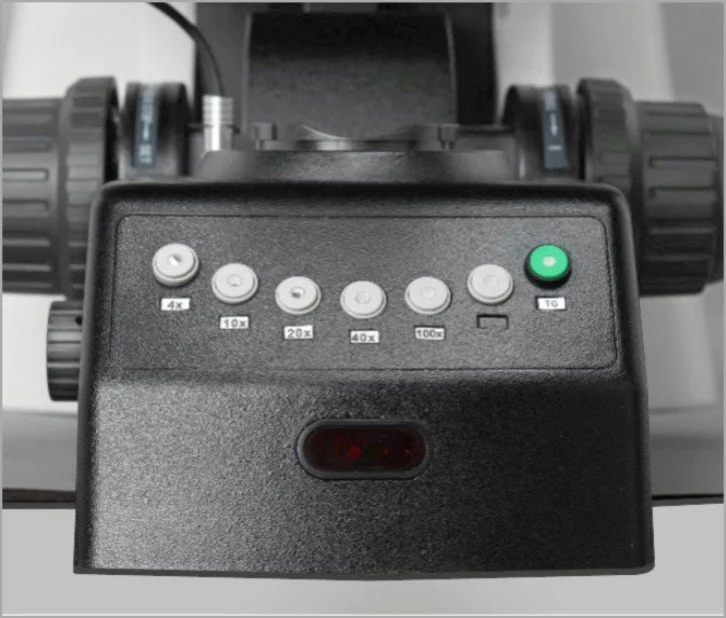

Remote Control Pad (NM930 model)
Objectives could be switched by simply pressing the rotating buttons. Users could also self-define two of the most commonly used objectives.User could swap between these two objectives by pressing the green button.

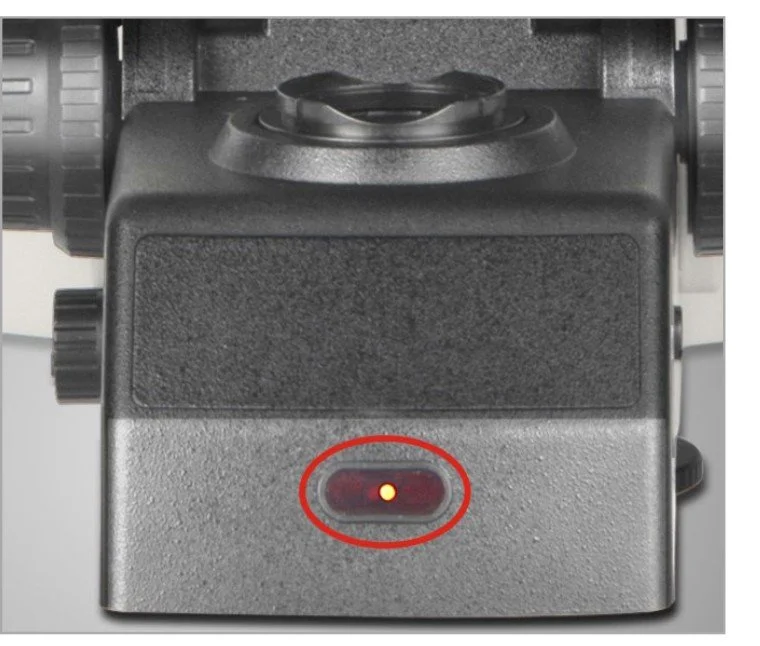

ECO Function
Light switches off automatically after 30 minutes, savesenergy and extends lamp life.
Key Specifications
| NM910-R/TR | ||
|---|---|---|
| Specification | NM910-R | NM910-TR |
| Optical System | NIS45 Infinite optical system | |
| Eyepiece | SW10X/25 • SW10X/22 • EW12.5X/16 • WF15X/16 • WF20X/12 | |
| Viewing Head |
Ergo tilting trinocular head, adjustable 0° to 35°, interpupillary 47-78mm Seidentopf trinocular head, inclined at 30°, interpupillary 47-78mm Seidentopf binocular head, inclined at 30°, interpupillary 47-78mm |
|
| Objective | NIS45 Series objective | |
| Nosepiece | Sextuplet nosepiece | |
| Condenser | NA0.65 | |
| Illumination | Reflected light 24v/100w halogen lamp, Kohler illumination | Reflected light 24v/100w halogen lamp, Kohler illumination Transmitted light 24v/100w halogen lamp, Kohler illumination, with ND6/ND25 filter |
| Focusing | Coaxial coarse and fine adjustment, fine division 1μm, moving range 35mm, sample space 76mm | Coaxial coarse and fine adjustment, fine division 1μm, moving range 35mm, sample space 56mm |
| Stage |
"4" Stage (right or left handle) Double layer mechanical stage 190 x 152mm, moving range 78x32mm (right or left handle) Double layer mechanical stage 190 x 152mm, moving range 78x54mm (right or left handle) |
|
| Accessories | Power cord | |
| NM930-R/TR | ||
|---|---|---|
| Specification | NM930-R | NM930-TR |
| Optical System | NIS45 Infinite optical system | |
| Eyepiece | SW10X/25 • SW10X/22 • EW12.5X/16 • WF15X/16 • WF20X/12 | |
| Viewing Head |
Ergo tilting trinocular head, adjustable 0° to 35°, interpupillary 47-78mm Seidentopf trinocular head, inclined at 30°, interpupillary 47-78mm Seidentopf binocular head, inclined at 30°, interpupillary 47-78mm |
|
| Video Adapter | 0.5X C-Mount | |
| Objective | NIS45 Series objective | |
| Nosepiece | Auto sextuplet nosepiece | |
| Condenser | NA0.65 | |
| Illumination | Reflected light 12v/100w halogen lamp, Kohler illumination | Reflected light 12v/100w halogen lamp, Kohler illumination Transmitted light 12v/100w halogen lamp, Kohler illumination, with ND6/ND25 filter |
| Focusing | Coaxial coarse and fine adjustment, fine division 1μm, moving range 35mm, sample space 76mm | Coaxial coarse and fine adjustment, fine division 1μm, moving range 35mm, sample space 56mm |
| Stage |
"4" Stage (right or left handle) Double layer mechanical stage 190 x 152mm, moving range 78x32mm (right or left handle) Double layer mechanical stage 190 x 152mm, moving range 78x54mm (right or left handle) |
|
| Accessories | Neximage 10.0 • Power cord | |
