Innovation and research for fluorescence microscopy

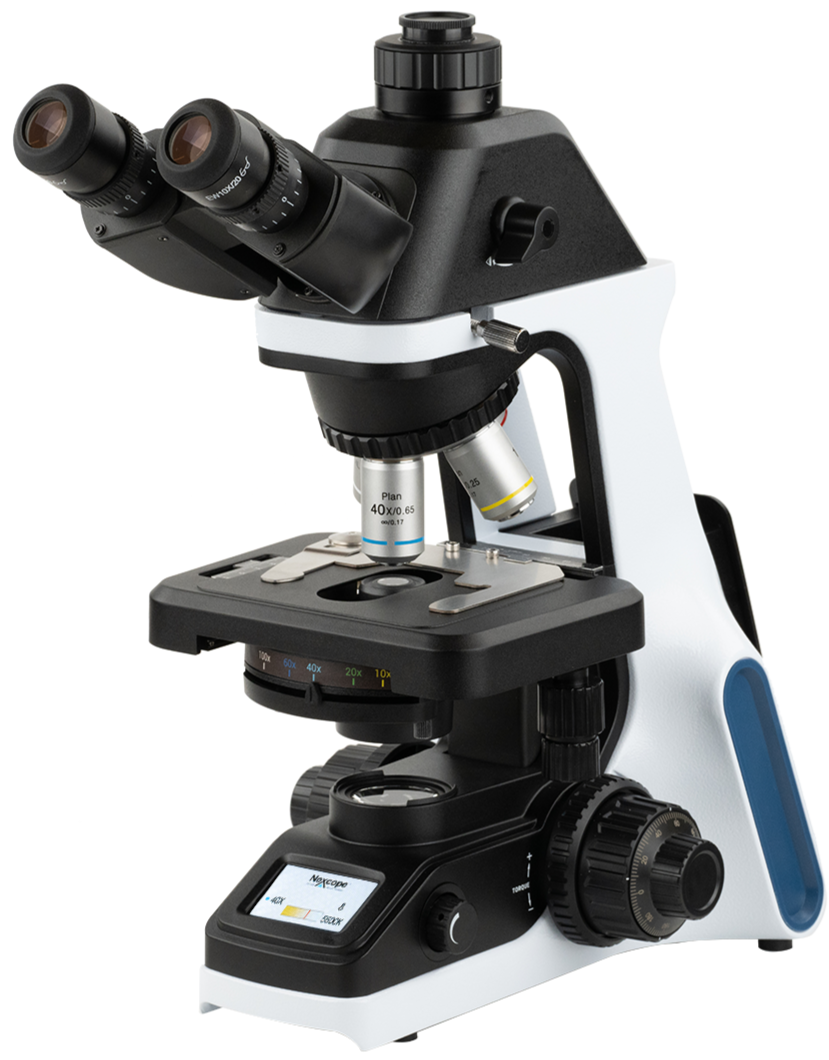

NE300
Education Microscope
Compact and Durable. Accurate and Reliable. Simple and Intuitive.
The Nexcope NE300 is a compact biological microscope designed for teaching and laboratory use. Built to handle the demands of daily classroom and lab work, it combines reliable optics with an intuitive interface that makes it accessible for first-time users without compromising on performance. Compact enough for space-limited benches, durable enough for repeated daily use.
Key Features
Integrated Digital Head
Connect the NE300 to your network and share live microscope views across the classroom in real time. The integrated digital head is the same size as a standard binocular head - no protruding camera, no cables cluttering the bench.

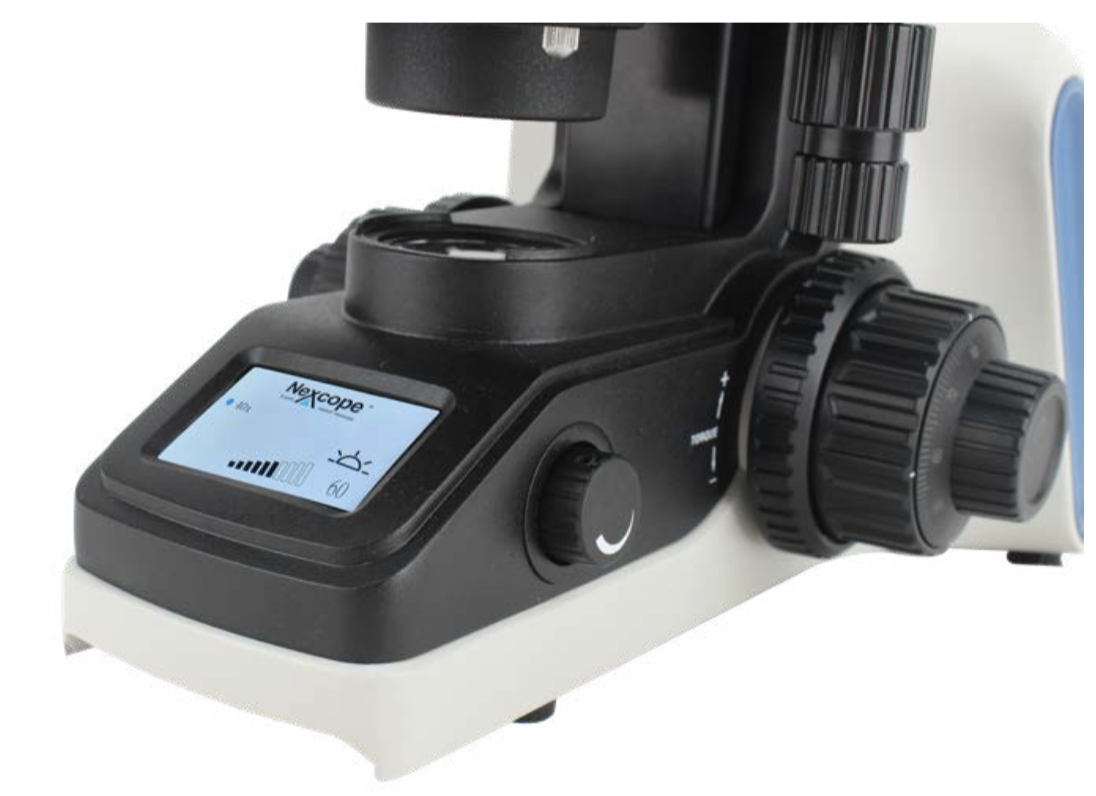

LCD Status Display
Magnification, brightness, and colour temperature are shown on the front-mounted LCD screen at all times - simple, clear, and easy to read mid-observation.

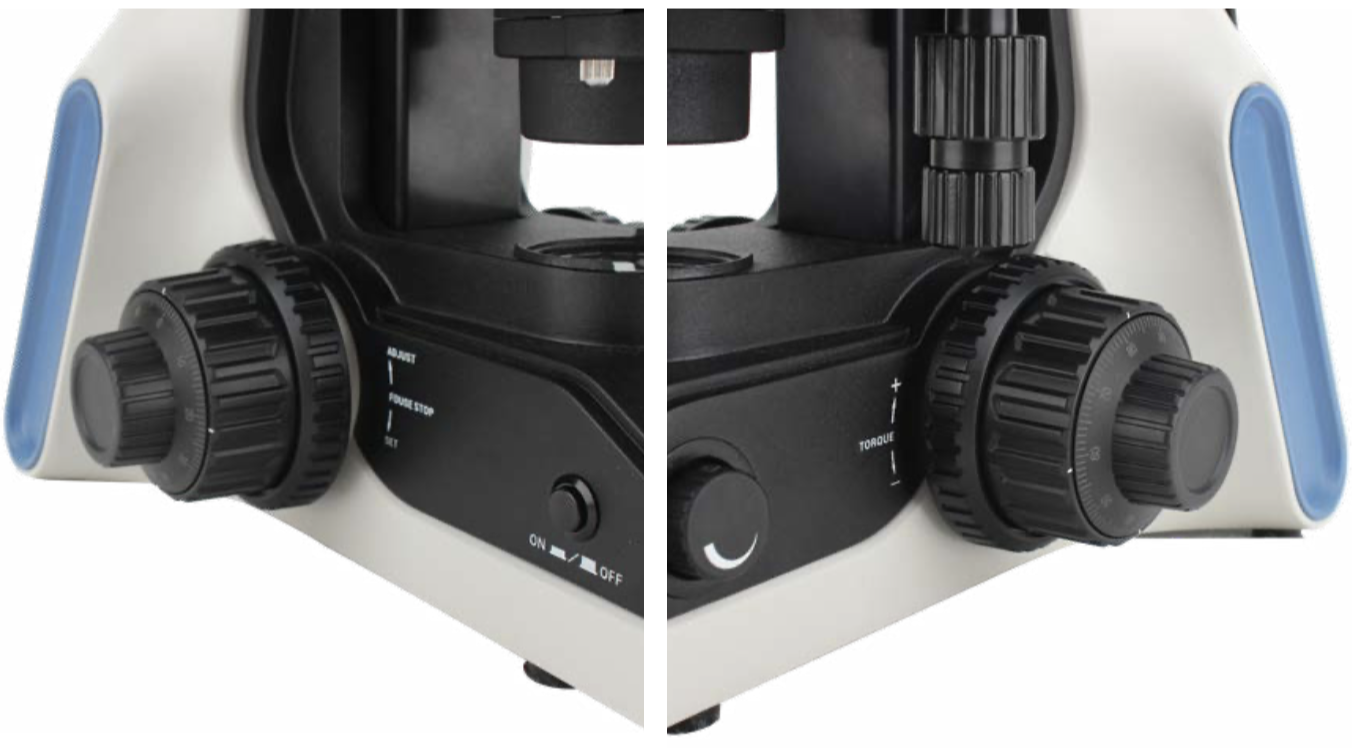

Focus Protection
The adjustable stage height stopper prevents over-focusing, protecting both slides and objectives. Essential in teaching environments where the microscope is used by multiple people every day.

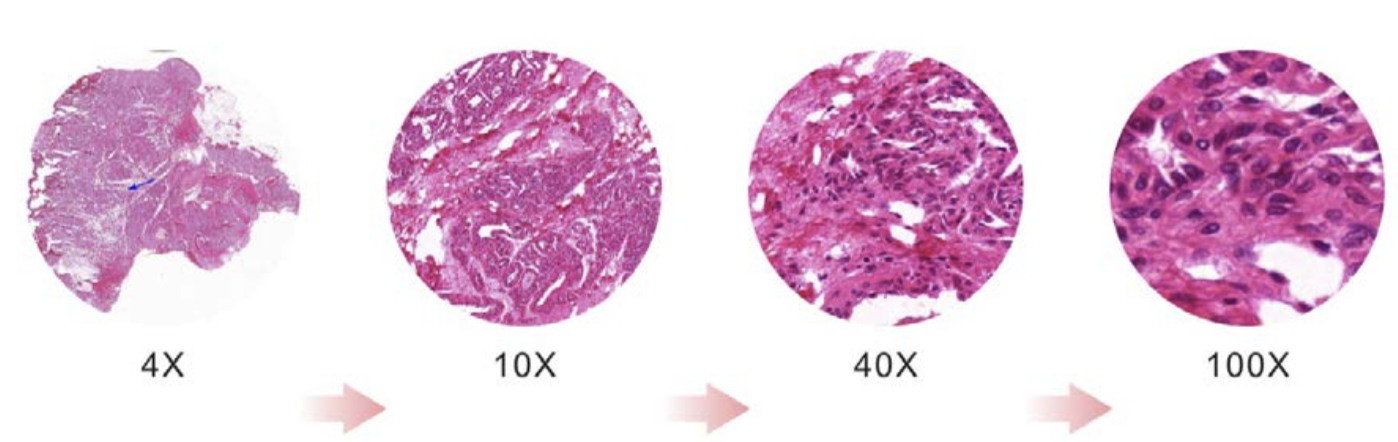

Sample Images
Intelligent Light Management
The NE300 automatically sets the correct brightness for each objective when switching magnifications. One less thing to worry about, so users can stay focused on the sample.
Focus Protection
The adjustable stage height stopper prevents over-focusing, protecting both slides and objectives. Essential in teaching environments where the microscope is used by multiple people every day.
Nexcope NE300 - get the best research-grade microscope features at a value price!
The NE300 is designed as a high-quality, research microscope suited to clinical, education and veterinary applications.
In classroom teaching, daily work in the laboratory, or even on the road, you need a microscope like the NE300. Compact, durable, easy-to-use and precision-engineered, the NE300 is perfectly suited to a wide range of applications. The NE300 boasts features and optics only found on competitors significantly more expensive systems.
As the base model in the Nexcope range, the NE300 offers bang for your buck!
Excellent Optics
LED light source for stability and brightness, adjustable colour temperature
Bright, even illumination at all magnifications

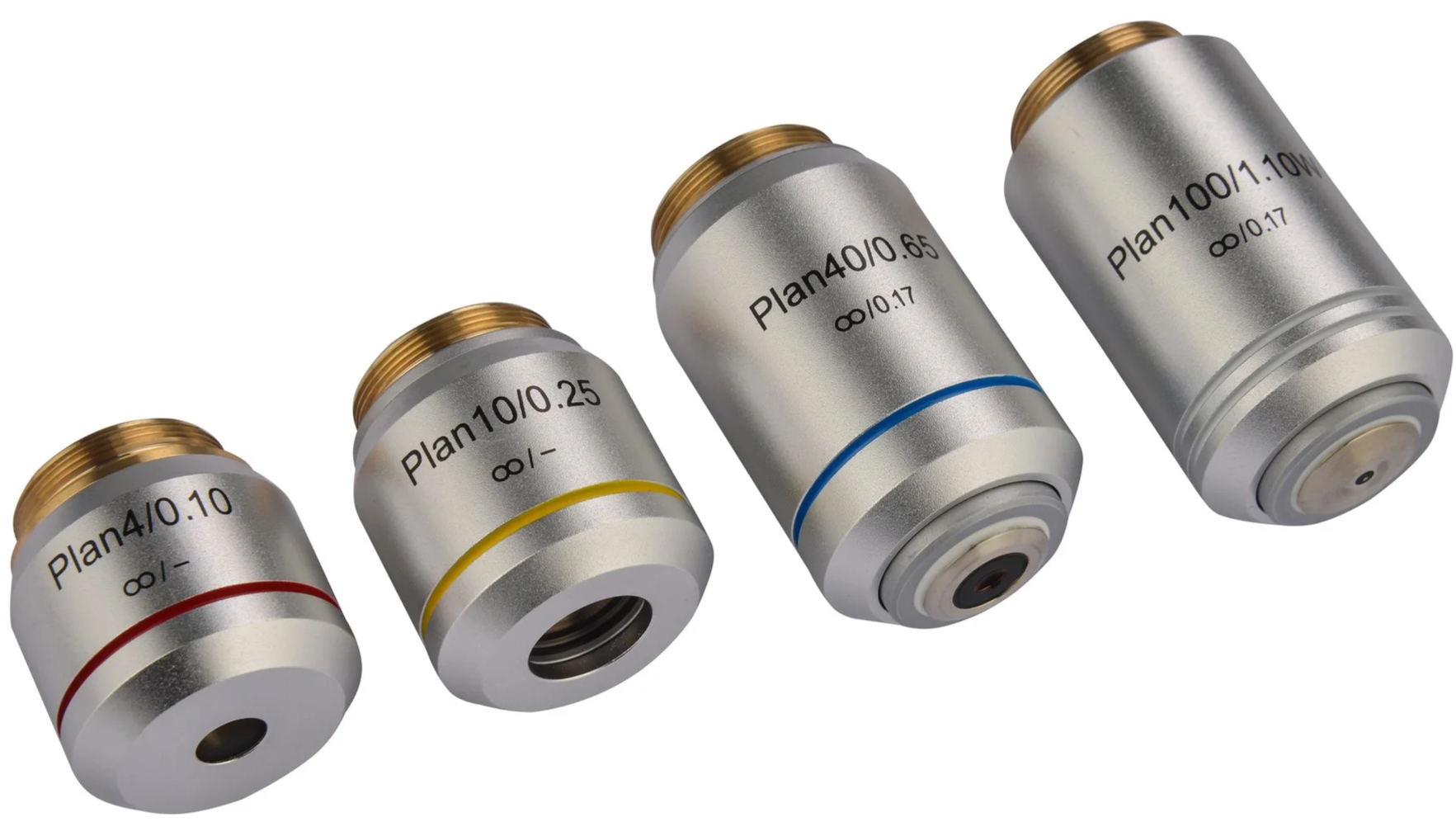

High-resolution Plan Achromatic Nexcope objectives 4X, 10X, 40X and 100X (oil), 45mm parfocal length
Large 20mm field of view for comfortable use
Easy to clean
Ergonomic
Comfortable operation with easy-to-reach focus knob
Adjustable focus torque, adjustable focus stopper in easy-to-reach locations
Compact condenser design with oversized aperture lever and colour-coded position settings for easy use
Maintains comfortable brightness when switching magnifications: coded nosepiece remembers light intensity setting when switching objectives
Integrated handle and cable wrap. Power supply included and fits in back of microscope
Flexible
Digital, binocular and trinocular versions available
Suitable for research, education and veterinary applications
Includes
Microscope
User guide
Cover
Immersion oil
Australian power cable and power supply
Options
Digital, binocular and trinocular versions available
Binocular: adjustable eyepieces with diopter adjustment
Trinocular: 0.55x c-mount, with 100% switching. Range of camera options available
Digital head: USB2 8 megapixel colour camera, 50/50 switching. Free software provided, including tile-scanning, cell-counting and extended depth of field processing (EDF)
Suitable for research, education and veterinary applications. Contact us for advice!
Buy from Klein Scientific - the official Nexcope distributor in Australia and New Zealand. Local stock, local expertise and local knowledge. Please contact us for customisation, bulk orders or requests not captured here.
Key Specifcations
| NE300 Compact Teaching Experiment Biological Microscope Specifications | |||
|---|---|---|---|
| Main body | NE300 Binocular set | NE300 Trinocular set | NE300 Digital set |
| Optical system | NIS infinity optical system | ||
| Illumination | High luminescent white 3W LED illuminator | ||
| Display | LCD display magnification, sleep timer, brightness indication and lock | ||
| Eyepieces (F.O.V., mm) | EW10X/20, with diopter adjustment | ||
| Tubes | Seidentopf binocular tube | Seidentopf trinocular tube | Integrated digital viewing tube |
| Nosepiece | Reversed-type quadruple nosepiece (coding) | ||
| Stage | Rectangular mechanical stage 180x130mm, with specimen holder, with vernier calibrations, moving range 74x30mm | ||
| Objectives | Plan Achromat 4X • Plan Achromat 10X • Plan Achromat 40X • Plan Achromat 100X | ||
| Condenser | Inserted condenser NA1.25 | ||
| Observation method | Brightfield | ||
